  • Product Description
Overview
Product Attributes

Model No.UniGel 30CM

Functional Group-CH2COO

Supply Ability & Additional Information

TransportationOcean,Air

Payment TypeL/C,T/T

IncotermFOB,CFR,CIF

   Nanomicrotech manufactures ion exchange media of highly uniform particle sizes (Fig. 1), with precise pore structures. The product line includes UniGel , Uni  , and Uni  MSP series media based on polyacrylic matrix, and Nano series of media based on poly(styrene-co-divinylbenzene, PS/DVB). All ion exchange media from Nanomicrotech come with distinct advantages of lot-to-lot reproducibility, easy column packing, etc.

 Uni series ion exchange media are made from highly cross-linked acrylic Microspheres with a hydrophilic coating; subsequently the desired ion exchange functional groups are later introduced onto the surface.  Complete hydrophilic coating greatly reduces the non-specific adsorption between the stationary phase and biomolecules, assuring a better yield. The unique coating and derivatization technology enables Uni  series media to have a high dynamic loading capacity of proteins. Uni series media are ideal for efficient separation of biomolecules such as proteins, nucleic acids, polypeptides etc.

  Ion Exchange Chromatography Media.Nanomicrotech offers UniGel ,Uni ,Uni MSP, and Nano series of monodisperse ion exchange chromatography media using a unique de novo synthesis technology that is developed in-house. These ion exchange media meet the demands of downstream processing, from capture, intermediate purification, polishing and analysis.    UniGel series possess a strong absorption capability toward biomolecules, even under considerably high ionic strength; therefore they are well-suited for the capture and initial purification of proteins. Uni series feature outstanding resolution, high loading capacity, and low non-specific adsorption, making them ideal for intermediate purification of proteins. Nanoseries are smaller in particle size, which is designed specifically for fine separation and analysis of proteins. All these types of media (resins) have the characteristics of high rigidity, good chemical stability, high resolution, low back pressure, and long lifetime, meeting the requirements of bio-analysis, separation, and manufacturing.

UniGel ion exchange media are made of hydrophilic acrylic microspheres with special functionalization on the surface. They provide a loading capacity twice as high as traditional ion exchange media, while resistant to high ionic strength. UniGel  series are uniform in particle size, with optimal hydrophilicity, good mechanical strength, and excellent chemical stability; these features make them particularly suitable for capture step (initial separation) in downstream processing.

Cation Resin Ion Exchange

Figure 1.SEM micrographs of IEX media from Nanomicro Tech (left) and an international market leader (right)

Outstanding Mechanical Strength

Nanomicrotech IEX media are made from highly cross-linked polyacrylic or poly(styrene-co-divinylbenzene, PS/DVB). They have a remarkable advantage of outstanding mechanical strength, when compared with those Ion Exchange Resins based on dextran or agarose. Nanomicrotech IEX media have shown little change in bed volume (Fig. 2), with increasing flow rate or pressure. This feature greatly improves efficiency of downstream processing, and it also addresses the need for a linear scale-up from the lab to manufacturing.

Ion Exchange Anion Resin

 Figure 2.  Comparison of a polyacrylic IEX media from Nanomicrotech and an agarose IEX media from a commercial supplier (pressure vs. flow rate curve)

Good Chemical Stability

Nanomicrotech IEX media are made from highly cross-linked polyacrylic or poly(styrene-co-divinylbenzene).  They maintain a good stability over a wide range of pH, which gives customer more rooms of operation (parameters/conditions) to achieve process development and optimization.

Ion Exchange Water Treatment

Figure 3.  Alkaline resistance test of UniÒ series of ion exchange media



High Resolution

Nanomicrotech IEX media have shown higher resolution and better recovery than a competitor`s IEX media in the separation of biomolecules, such as proteins, nucleic acids, polypeptides, and polysaccharides (Fig. 4 & 5).

Ion Exchange Water Softener

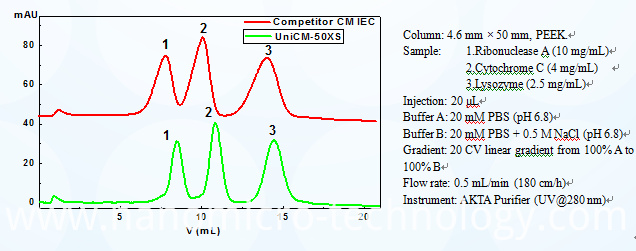

 Figure 4.  UniÒCM-50XS vs. a competitor`s IEX medium in separation of proteins

Ion Exchange Resin Suppliers

Figure 5. NanoSP-10L in separation of proteins

High Loading Capacity

With uniform particle sizes, optimized pore structure, and unique surface coating/derivatization, Nanomicrotech IEX media have higher loading capacity than international competitor`s IEX media (Fig. 6).

Ion Exchange Water Filter

Figure 6. Comparison of dynamic loading capacity of Lysozyme, UniGel-80DEAE vs. an international competitor`s IEX medium

Deionizers With Ion Exchange Resins

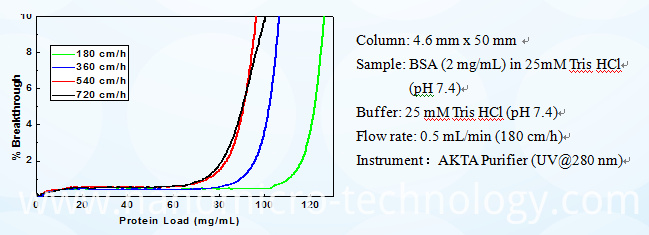

 Figure 7.  Dynamic loading capacity of UniGel-80DEAE under different linear flow rates

List of Products

Series

Products

Particle Size

Pore Size

Functional Groups

Features

Applications

μm

Å

UniGelÒ

UniGel®-30/80CM/

SP/DEAE/Q

30,80

XS:300

S:500

L:1000

CM: -CH2COO-

SP: -(CH2)3SO3-

DEAE:

-(CH2)2N(C2H5)2

Q: -CH2N+(CH3)3

High loading capacity/salt resistance

Capture/intermediate purification

UniÒ

UniÒCM/SP/

DEAE/Q-30S/

50XS

30,55

Low non-specific adsorption

Intermediate purification/polishing

UniÒMSP

UniÒMSP -30/50XS

30,55

Mixed mode/good selectivity/salt resistance

Intermediate purification/polishing

Nano

NanoSP/Q-5/

10/15/30L

5,10,15,30

High resolution/

mechanical strength

Polishing/analytical detection
